This page contains all the LEGACY custom firmware files for Netgear's DGND3700 V1 / N600 (ADSL/VDSL(FTTC)/WAN Router).

(The DGND3700 V2 is a different Broadcom chipset and only supports ADSL, NOT VDSL!)

  • NOTE this is built based upon Netgear's released GPL source code and is not related in any way to Netgear beyond that.


DGND3700 v1 / N600 Screenshots

Service settings - Avahi/NFS/SMB/ReadyMedia(DLNA)/Cron/Transmission/Automatic/WOL
ADSL Advanced settings
DynDNS - Inadyn-mt
SNMP Monitor - miniSNMPD
Torrent - Transmission/Automatic

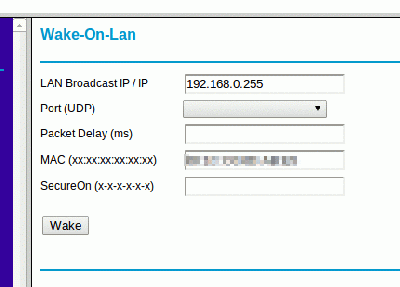

Wake-On-Lan (WoL)
Transmission Bittorrent WEB GUI
SNMP logging output (from external program RRDtool)
PXE (Network) Boot Screen


Please note this is the legacy version for the 3700v1 only, please see the main page for the new GENIE version for 3700v1/3800.


Download Latest Firmware DGND3700V1/N600 - Legacy Version

Download Link DGND3700_2015-02-08_A_D.chk

  • Known issues : openVPN , default has --pushroute instead of --push route, need to manually alter nvram variable openvpn_value

Changelog 2015-02-08

Additions:

  • iperf3 added (for devs, requested by Pietro)
  • LiME loadable kernel module, whole memory dumping (for devs)
  • (front) physical WPS Button Override, to run any arbitrary command, such as poweroff.
  • 'Network settings' > DNSMasq 'additional configuration' (Netflix w/ Hulu bypassing etc.)

Fixes:

  • IPoEoA connections with VLAN tagging now work; e.g. Sky Fibre (UK), TalkTalk fibre (UK)
  • nfs now starts correctly on USB hotplug, fixing: "daemon.err mountd[1854]: unable to register (mountd, 1, udp)" - Created retry patch
  • Various minor updates/improvements/fixes.

Updates:

  • nfs-utils 1.3.0 > 1.3.2
  • busybox 1.22.1 > 1.23
  • dropbear 2014.65 > 2014.66
  • sqlite 3080301 > 3080704

Changes:

  • 'xDSL Advanced', more DSL stats views available , refreshable. (requested bulldog147)
  • 'Lan Setup', warning on about disabling DHCP disabling DNS.

Changelog 2014-10-26

Additions:

  • Network Traffic menu entry that displays all interface traffic directly from kernel.
  • Added two extra Filter entries to Automatic (if you are already using it you will need to manually delete automatic.data and let it regenerate to make use of them)
  • openSSL binary added to firmware image for TLS key gen for openVPN
  • 'Network Settings', new options; openVPN port change and SSH(Dropbear/SFTP) WAN port change. [LAN still on 22]

Fixes:

  • Patched bug(SSH2_MSG_UNIMPLEMENTED) in Dropbear 2014.65 , also now supports ECDSA keys.
  • Fixed issues where 'state' wasn't showing correctly in 'Network Services' with inadyn-mt
  • VLAN tagging can now tag WAN port as well as xDSL port, to support FTTH (fiber-to-the-home)

Updates:

  • Added more info to 'Attached Devices' such as arp cache/scan, dnsmasq leases and MAC <> OUI (vendor/manufacturer) lookup. Thanks to Netgear forum members for suggestions!

Changes:

  • openVPN now uses TLS keys by default, these are generated the first time it starts and stored in nvram (available as files in /tmp/CA). If you were previously using it with static key, you need to delete the 'openvpn_value' nvram variable to let it regenerate.
  • Have redone most of the log outputs using JS/AJAX and display them in reverse order so newest entries are at the top. Should also help browser compatibility.
  • Samba logs into main system log
  • Updated bits of 'Network services' page and backend script to reduce delays.

Changelog 2014-09-29

This replaced 2014-09-28 which had a problem with samba

Additions:

  • openVPN 2.3.4 (not affected by ShellShock, no auth-user-pass-verify in default config [and no bash shell anyway])

Fixes:

  • Using WAN port as 5th Ethernet port (actually port 0) now works fully without isolation.
    (thanks to help from 'erm67' in decyphering /proc/switch!)
  • Fixed occasional race condition with dnsmasq restarting before ports were freed.
    (don't understand how it happens but adding a retry loop in the source fixed it.
    The version change also fixes another possible race condition problem)

Updates:

  • miniDLNA/Readyshare 1.1.3 ? > 1.1.4 (fixes for some Philips TVs, added Magic Containers)
  • Transmission 2.83 > 2.84
  • OpenSSL 1.0.1h? > 1.0.2 beta3 (no Heartbleed)
  • OpenSSH 6.3p1 > 6.6p1
  • NFSUtils 1.2.7 > 1.3.0 (NFSv2 still enabled)
  • inadyn-mt 02.24.38 > 02.24.43 (fixes, extra dynmaic dns servers supported)
  • Dropbear(SSH) 2013.56 > 2014.65 (compiled with reduced unauth limits to help against brute force attacks)
  • Samaba 3.2.22 > 3.2.24 (final Samba 3 release)
  • DNSMasq 2.71 > 2.72

Changes:

  • Unnecessary 'dsldiag' removed from acos_init startup to save some CPU cycles.
  • Altered built in accounts/groups to be more correct.
  • Temp file used on altering web config values changed to be not the same as minidlna was still using!
  • other minor bits and bobs.

Changelog 2014-05-29

This replaced 2014-05-26 which had a problem with dnsmasq

Additions:

  • tcpdump/libpcap 4.5.1 / 1.5.3 - network debugging/monitoring
  • PXE Boot will serve all menu/data from USB if attached with magic folder /pxe/
  • NVRAM variable dnsmasq_custom_options will append contents to dnsmasq config file
  • Added items to Web UI
    • additional WAN DHCP Client options can be passed (1483/MER)
    • additional DNS server to DHCP assigned ones
    • timezone setting (TZ)
    • Ad-blocking list URL

Fixes:

  • WAN VLAN tagging works properly (e.g. with BT Infinity, UK)
  • Automatic RSS torrent feed web interface now works again

Updates:

  • miniDLNA/Readyshare > current Git (fixed some Samsung TV problems amongst many other fixes)
  • Transmission 2.82 > 2.83
  • OpenSSL > 1.02 (HEATBEAT disabled)
  • Dnsmasq 2.68 > 2.71
  • PXElinux > 6.02 (now direct via lpxelinux.0 without iPXE)

Changelog 2014-03-15

Additions:

Fixes:

  • SMB2 (Samba V2) support now working. (Oddity of obsolete 'security = share' disabling SMB2 support.)

(Note gvfs-mount as used in Nautilus etc. only supports SMB1).

  • umount now works again (bug introduced in Busybox 1.22.0 - I found/fixed).

Updates:

  • cURL 7.33.0 > 7.35.0
  • miniDLNA/Readyshare > todays current git (development seems to have restarted)
  • sqlite3 > 3080301
  • NTFS-3g > 2014.2.15

Changes:

  • Now (almost) everything compiled with gcc optimize level -O3 for possible slight speedups/lower cpu usage. (Previously most were -O2 and some only -Os)
  • Removed some unnecessary build options in ffmpeg to reduce library sizes (used by miniDLNA/Readyshare)
  • Retracted using ionice for TBT and DLNA

Changelog 2014-02-14

Additions:

  • Ad blocking via DNS (dnsmasq) - [default using http://pgl.yoyo.org which isn't too large and yet still blocks 99%, can be changed via nvram parameter 'adblock_blocklist', if dnsmasq formatted]
  • Additional DNS server can be added in addition to DHCP aquired ones by adding it's IP with nvram paramter 'wan_dns_extra'

Additions - Testing: [feedback please as untested]

  • VLAN tag (WAN VLAN ID) on atm0 interface (for VDSL [e.g. BT Infinity, ID 101, remember transfer mode needs to be also PTM])
  • IGMP Proxy (IPTV)

Fixes:

  • Removed the possibility of race condition in acos_service when wan is going down and up where it may be reading/writing/moving/deleting resolv.auto file at the same time.
  • Few minor GUI tweaks

Changes:

  • Dnsmasq now doesn't poll for resolve.auto, relies on wan up/down, (will save a few CPU cycles)
  • Time/date set via busybox's ntpd on wan up (time.nist.giv & time.pool.org). No longer running timesync with Netgear's servers, (will save a few CPU cycles)

Changelog 2014-01-20

Additions:

  • SNMP Monitor (Web GUI)
  • Wake-On-Lan (Web GUI)
  • Cron Scheduler (Web GUI)
  • Avahi/Bonjour/Zeroconf services advertisments
  • RIP (re-enabled Netgear's implementation with zebra/ripd)
  • bbe (binary block editor), wol (cli)

Updates:

  • Busybox > 1.22.1
  • Samba > 3.6.22

Fixes:

  • Patched pre-existing bug in lld2d (link layer topology discovery daemon) so when it randomly renames the LAN Setup > Device Name it goes to a default DGND3700 and not "802.11 Broadcom Reference", which breaks things (such as Windows 7 'network map')
  • Transmission startup script will no longer cause a 0 byte config file if the drives full.
  • A few other minor fixes.

Changes:

  • Enabled MaxMTU setting to 1492 on PPPoA
  • LAN Setup > 'Device Name' now forced to only allow alphanumeric and hyphens as being used as hostname and as part of the service names
  • Web GUI updated with new 'network services' and text tweaking for clarity
  • Most programs/services now separately enabled/disabled via the 'network services'.
  • miniDLNA now referred to with its new name 'ReadyMedia'
  • more filtering of webui input to block anyone entering invalid characters that may break parsing

Changelog 2013-12-20

Additions:

  • p910nd non-caching print server daemon added, autostarts on USB printer hotplug. (Appsocket/HP JetDirect , port 9100)

Changes:

  • Altered ADSL 'Target SNR Margin' adjustments on web gui to have finer grained control (10% increments)

Changelog 2013-11-27

Additions:

  • telnet client as requested
  • crontab/crond as requested (and cURL executable). Setting nvram option cron_value with a normal crontab entry will make crond start using that value.

Updated:

  • rebuilt MIPS build toolchain with all available patches (fixing daemonize bug)
  • minidlna to 1.1.1, now running properly daemonized. (Netgear worked around this by leaving it running in debug mode!) It should take up less resources now doing a scan too & work with more tv's etc.
  • openssl 1.0.2
  • all the (A/V) libs that minidlna uses. (ffmpeg 2.0.2 ,libogg 1.3.1, flac 1.3.0 & zlib 1.2.8)

Fixes:

  • dnsmasq now back to low CPU usage & not crapping out (setting --query-port=0), thanks to a tool called dnsblast that let me get to the bottom of it after weeks of fiddling and trying to find a reliable test.
  • unplugging a usb device should stop services and cleanup everything properly.
  • other minor things I can't remember now as it has been so long since last release.

Changes:

  • ionice reducing I/O priority of transmission and minidlna to get low dibs order on the usb drive and not hog it.
  • multitude of kernel patches from Olegs Wl-500g firmware
  • Using ISO-8601 for firmware numbering. (FYI Netgears choice '10201736' is month:10 day:20 hour:17 minute:36, no year)

Changelog 10201736

Additions/Improvements:

  • udhcpd nuked, DNSMasq now doing DNS and DHCP, featuring;
    • resolvable LAN hostnames including the router
    • DNS query caching (including local caching for TBT trackers etc.)
    • simultaneous query of DNS servers, using fastest.
    • some protections against attacks involving DNS
  • PXE boot enabled, with two flavours of Memtest86 currently bootable, via TFTP > HTTP (iPXE > PXELINUX), F12 on most systems at boot. [expansion in mind, pull larger stuff from the USB drive]
  • Can add LAN/Ethernet port to the bridge (to act as 5th LAN port)
  • Renice original default programs to low priority on startup

Fixes:

  • Dropbear SSH Firewall enabled didn't stick after power cycle (moved on menu, now called 'dropbearfw')
  • Static leases work correctly.

Changelog 10121522

  • Automatic URL/Feed parsing fixed
  • Updated Busybox and Dropbear
  • Added sftp-server (from OpenSSH) addition for Dropbear to allow SFTP access
  • Added opening external Firewall to allow SSH/SFTP
  • Dropbear now logs to syslog

Changelog 09121810

  • Fixed log to be working again
  • Annex M and VDSL selection on new menu set them. [Note, under 'Settings' > 'ADSL Setting' , 'VDSL' setting has no effect]
  • Updated Transmission 2.77 > 2.82
  • Added Automatic 0.8.0 for automatically adding torrents from RSS feeds.
  • GUI page for dyndns
  • Added advanced Wifi menu back that was 'hidden' in original firmware, A-MPDU/A-MSDU aggregation, Beacon, DTIM interval setting.
  • Much more feature enhanced web GUI for ADSL, Dyndns, Torrent/Automatic settings
  • Shutdown/reboot from new menu shut everything down nicely first from inittab
  • Compiling firmware initially is quicker as enabled multiple job build (-j4) on most things [16m on Corei5].
  • Other minor things I cant remember.

Previous DGND3700 V1 / N600 firmware versions

DGND3700_2014-10-26_A_D.chk

DGND3700_2014-09-29_A_D.chk

DGND3700_2014-05-29_A_D.chk

DGND3700_2014-03-15_A_D.chk

DGND3700_2014-02-14_A_D.chk

DGND3700_2014-01-20_A_D.chk

DGND3700_2013-12-20_A_D.chk

DGND3700_2013-11-27_A_D.chk

DGND3700_10300925_A_D.chk

DGND3700_10201736_A_D.chk

DGND3700_10121522_A_D.chk

DGND3700_09121810_A_D.chk

DGND3700_06101913_A_D.chk

DGND3700_04091659_A_D.chk

DGND3700_04071713_A_D.chk

DGND3700_03261737_A_D.chk

DGND3700_03021748_A_D.chk
